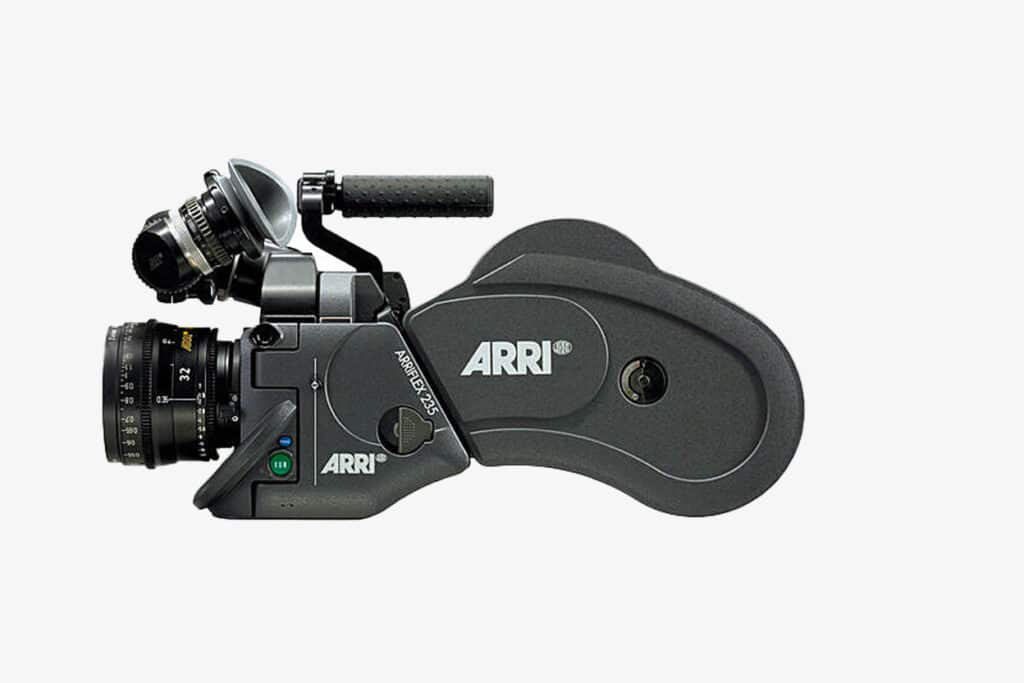

ARRI 235
The ARRI 235 is a lightweight 35mm MOS film camera designed for handheld, Steadicam, and rig-mounted work. Compact yet versatile, it features a PL mount, adjustable reflex mirror shutter (11.2°–180°), and frame rates from 1–75 fps. Its portability makes it a favorite for commercials, music videos, second-unit work, and any production needing true 35mm motion picture quality in a small package.
Technical specification
- Format: 35mm motion picture film (Super 35, 3-perf and 4-perf options)
- Lens Mount: PL mount (54mm)
- Frame Rates: 1–75 fps (forward)
- Shutter: Reflex mirror shutter, adjustable 11.2° – 180°
- Weight: Approx. 7.7 lbs / 3.5 kg (body + viewfinder)
- Power Requirements: 21–35V DC
- Magazines: 200ft & 400ft shoulder or Steadicam mags (compatible with certain ARRI 2C/3/435 mags)
- Viewfinder: Optical, with interchangeable eyepieces/extensions
- Ground Glass: Interchangeable (4:3, 16:9, anamorphic, spherical)
- Video Assist: Color video tap / IVS available
- Operating Temperature: -20°C to +50°C
What's included
- ARRI 235 camera body with PL mount
- Optical viewfinder with standard eyepiece + extension eyepiece
- 200ft & 400ft magazines (shoulder + Steadicam options)
- Ground glass (choice of 4:3, 16:9, spherical, or anamorphic)
- 2x onboard batteries + charger
- Video assist system (color) for monitoring
- Protective hard case
- Bridge plate & baseplate with 15mm/19mm rods
- Shoulder pad for handheld operation
- Accessory brackets & mounting hardware
- Onboard power cables & adapters
| Camera | Film Format | Shutter | Frame Rates | Weight | Mount |
|---|---|---|---|---|---|
| ARRI 235 | Super 35 / Standard 35 | Reflex mirror shutter adjustable 11.2°–180° | 1–75 fps (crystal accurate) | 3.5 kg / 7.7 lbs | PL |
Elevate Your Project. Enquire Now.
Looking to rent the ARRI 235 35mm film camera in NYC? Contact Gotham Cine today to check availability, request a quote, or discuss how this lightweight yet versatile camera can elevate your production. Whether you’re shooting handheld, on Steadicam, or mounting it for dynamic second-unit work, our team will ensure you have the right support, accessories, and gear to capture authentic 35mm motion picture quality with confidence.
